EHANG’s “sandbox” VALIDATION of EH216-S by Sri Lankan Civil Aviation Authority—WHAT’S IT REALLY PROVING?

JDA Aviation Technology Solutions



{footnote[1]lists the country’s industries.}

EHANG is copying the US’s eIPP on an international basis. The company (PRC[2]) has entered into an agreement with the (CAASL) to engage in a sandbox demonstration of EH216-S flights[3] and practical operation scenarios. The announcement points to initial trials:

• • • • First at Colombo’s Port City special economic zone
      • Then scenic flights over the fortresses of Sigiriya
      • Plus shuttle flights connecting Katunayake airport to hotels in the centER of the capital.
      • And maybe even maritime cargo logistics applications.

The Fast Track envisions a replicable, four-phase roadmap, aiming to enable authorities to move from VALIDATION TO COMMERCIALIZATION more efficiently based on an already-certified aircraft:

1. 1. 1. 1. Observe real autonomous operations using an already‑certified aircraft
         2. VALIDATE airworthiness, flight operations, emergency procedures, and ground systems
         3. Framework alignment — regulatory workflow established, and validation pathway defined.
         4. Sandbox build-out — site designation, infrastructure and ground operations systems deployed.
         5. Train inspectors and operational teams
         6. Build a regulatory pathway toward full commercial approval
         7. Demonstrate public‑facing trial flights to build acceptance
         8. Commercial launch — operational approval and commercial service.

The EHANG plan will “COMPRESS TIMELINES from years to months,” so sayeth the company.

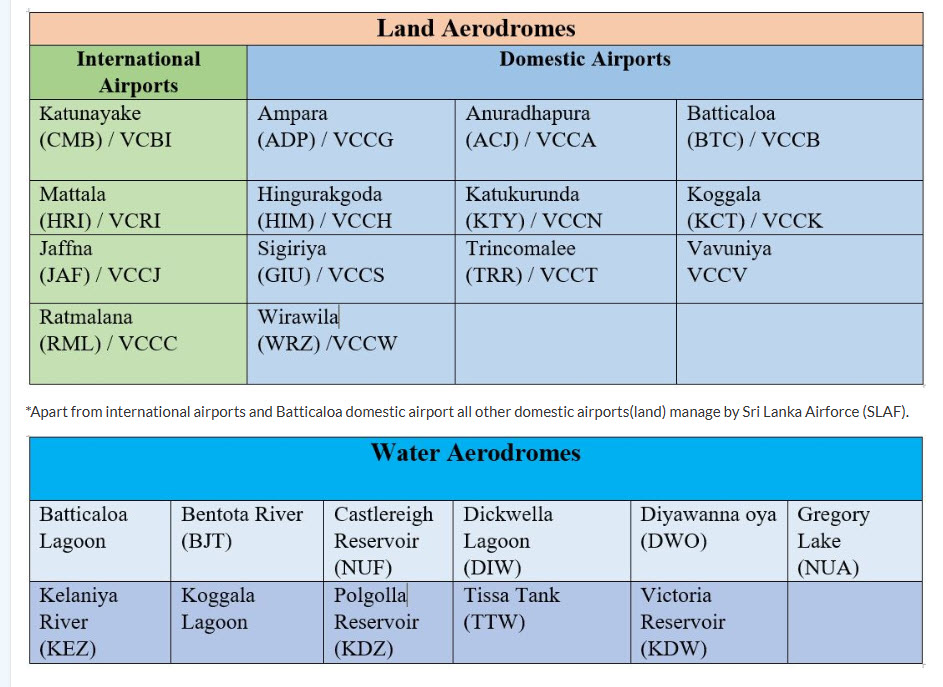

SAASL has excellent rankings by ICAO (USOAP) and FAA (IASA). Its airlines are well known for their safety. They regulate 5 airlines[4] , 4 major land aerodromes and 2 water aerodromes[5]. They have no experience issuing a Type Certificate for an aircraft, other than accepting the TC of another CAA—which is what they are presumably going to do with the EH216-S.

CAALS will be called on to complete the eight safety determinations (above) under the FAST TRACK TASKS. This an extraordinary challenge- the aircraft has engineering that is filled with cutting edge technology. like :

• • • Motors: 16 independent brushless electric motors, model EHM13850KV33, each producing 0 kW for 2 minutes and 5.8 kW continuous at 2150 rpm .
    • Propellers: 16 coaxial rotors (8 arms × 2 rotors per arm), diameter 575 m, clockwise and counter‑clockwise matched sets (EH‑P‑D1575CW / CCW) .
    • Architecture: Pure multirotor (octocopter with coaxial pairs), no tilt‑rotors, no tilt‑engines data) .

• • • Energy: Independent analysis shows two 14.4‑kWh lithium‑ion packs (total ~28.8 kWh) with 5‑minute swap capability at vertiports .

• • • The CAAC Type Certificate Data Sheet confirms the aircraft meets the special‑conditions airworthiness basis SC‑21‑002 for eVTOLs, which includes structural integrity, crashworthiness, and occupant protection requirements for autonomous aircraft.

• • • The fuselage is a composite monocoque cabin (EHang’s published design).

• • • The CAAC TC does not list IFR approval.
    • Independent reporting confirms the EH216‑S operates autonomously between predefined vertiports under ground‑control supervision, with operations limited to low‑density or uninhabited terrain under CAAC special conditions .

• • • No pilot controls: No stick, yoke, pedals, throttle, or manual override.
    • Passenger interface: Only an emergency stop button and a small route display.
    • Ground control: Managed by a ground control computer and ground control station (models S‑055L1009, DT‑14S, SOI‑16100‑003) per TC data .
    • Certification basis: CAAC wrote special conditions specifically for EH216‑S, validating autonomous flight under remote supervision .

• • • Cruise speed: 105 km/h (TC) / ~80 mph (independent reporting)
    • Max airspeed: 130 km/h (TC)
    • Range:
      • TC: ~30 km
      • Independent reporting: 21 miles (34 km) effective range with reserves
    • Endurance: ~21 minutes (cruise)
    • Max takeoff weight: 620 kg (TC) / ~600 kg (independent reporting)
    • Service ceiling: 1000 m MSL (TC) / ~3000 m reported (likely envelope vs. certified limit)
    • Operating altitude: ≤120 m AGL (TC) — consistent with urban eVTOL rules .

The test plan lays out these steps in the FAST TRACK test:

• • • A designated site or route (e.g., Colombo Port City in Sri Lanka)
    • Installed infrastructure (ground systems, vertiports, charging, UTM integration)
    • Controlled airspace for autonomous operations
    • Regulator‑supervised validation flights
    • Limited commercial operations once safety criteria are met

While many of these specific assessments are technically covered by the CAAC’s TC/AC, CAASL has agreed to VALIDATE flight operations, emergency procedures, and ground systems through these exercises. REGULATORS must do more than “observe” to make such SAFETY DETERMINATIONS; so CAASL must define exacting criteria on which these safety parameters will be judged. OTHERWISE THE VALIDATION WILL RECEIVE LITTLE CREDENCE by other CAAs.

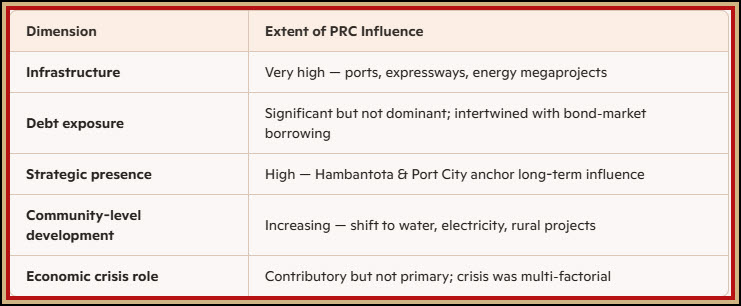

Without any substantive evidence, is it fair to question Sri Lanka’s true independence, given the PRC’s financing of the former kingdom’s important sectors?



















Churchill’s quote about Russia seems apropos to the PRC which today qualifies as “an enigma wrapped in conundrum.” IT WILL BE INTERESTING TO SEE HOW THIS SANDBOX VALIDATION PROVES THAT THE EH216-S CAN OPERATE SAFELY OTHER THAN ON A PREPLANNED EXHIBITION.



Sri Lanka joins EHang’s fast-track programme

By Murdo Morrison | 19 August 2026

Colombo to take part in effort to cut certification and adoption timeline for Chinese eVTOL platform from years to months.

Chinese electric vertical take-off and landing (eVTOL) developer EHang has launched an initiative to accelerate the take-up of its autonomous EH216-S in export markets, with Sri Lanka the first to join what it calls its Global Fast Track Program.

The effort is designed to HASTEN certification and entry into service by working with civil aviation authorities to “COMPRESS TIMELINES from years to months,” says EHang.

The Guangzhou-based company has been flying sightseers in China since achieving an operating certificate for the EH216-S in March 2025, 17 months after being granted type certification. EHang is the first eVTOL manufacturer to reach this milestone.

Although NO JURISDICTIONS OTHER THAN CHINA HAVE APPROVED THE EH216-S, EHang has flown demonstration flights with the pilotless platform in 23 countries, including over the summer in Kazakhstan, the canton of Ticino in Switzerland, and at the Tulum air show in Mexico.

Sri Lanka’s ministry of ports and civil aviation and its civil aviation authority will oversee the latest programme which, according to EHang, will build on “the practical experience… accumulated through years of engagement with multiple civil aviation authorities.”

The aim is to create a “REPLICABLE, FOUR-PHASE ROADMAP TO ENABLE AUTHORITIES TO MOVE FROM VALIDATION TO COMMERCIALISATION more efficiently, based on an already certified aircraft.”

EHang and Sri Lankan officials will “jointly plan sandbox flight[6] sites and practical operation scenarios,” with initial trials centered on Colombo’s Port City special economic zone.

Future routes under consideration include scenic flights over the fortresses of Sigiriya and shuttle flights connecting Katunayake airport to hotels in the centre of the capital. EHang says that maritime cargo logistics applications are also being explored.

“Sri Lanka is embracing emerging aviation technologies to transform our tourism industry, strengthen emergency response capabilities, and meet maritime logistics and coastal services needs,” says Anura Karunathilaka, Sri Lanka’s minister of ports and civil aviation, who adds that the programme “offers a structured approach that aligns well with our development priorities.”

---

[1] Agriculture: +1.4%; Industry: +7.8% (construction +9.2%); Services: +3.3% (tourism‑linked accommodation & food +12.4%); Real GDP: +5.0%;Private consumption: +8.6% (major driver of growth)

[2] EHang operates inside a PRC strategic sector (“low‑altitude economy”) and receives substantial support from PRC municipal and provincial governments, including partnerships, subsidies, and joint ventures with state‑owned enterprises (SOEs). That creates influence, but not ownership.

[3] A sandbox is a bounded operational zone—a specific site or route—where:

• The regulator and EHang jointly build out infrastructure
• Ground systems and UTM integration are installed and tested
• Validation flights are conducted under controlled conditions
• Limited commercial operations (tourism, point‑to‑point transport) begin once safety criteria are met

[4] SriLankan Airlines, FitsAir, Cinnamon Air, Helitours, Millennium Airlines

[5]













[6] A sandbox is a bounded operational zone—a specific site or route—where:

• The regulator and EHang jointly build out infrastructure
• Ground systems and UTM integration are installed and tested
• Validation flights are conducted under controlled conditions
• Limited commercial operations (tourism, point‑to‑point transport) begin once safety criteria are met
